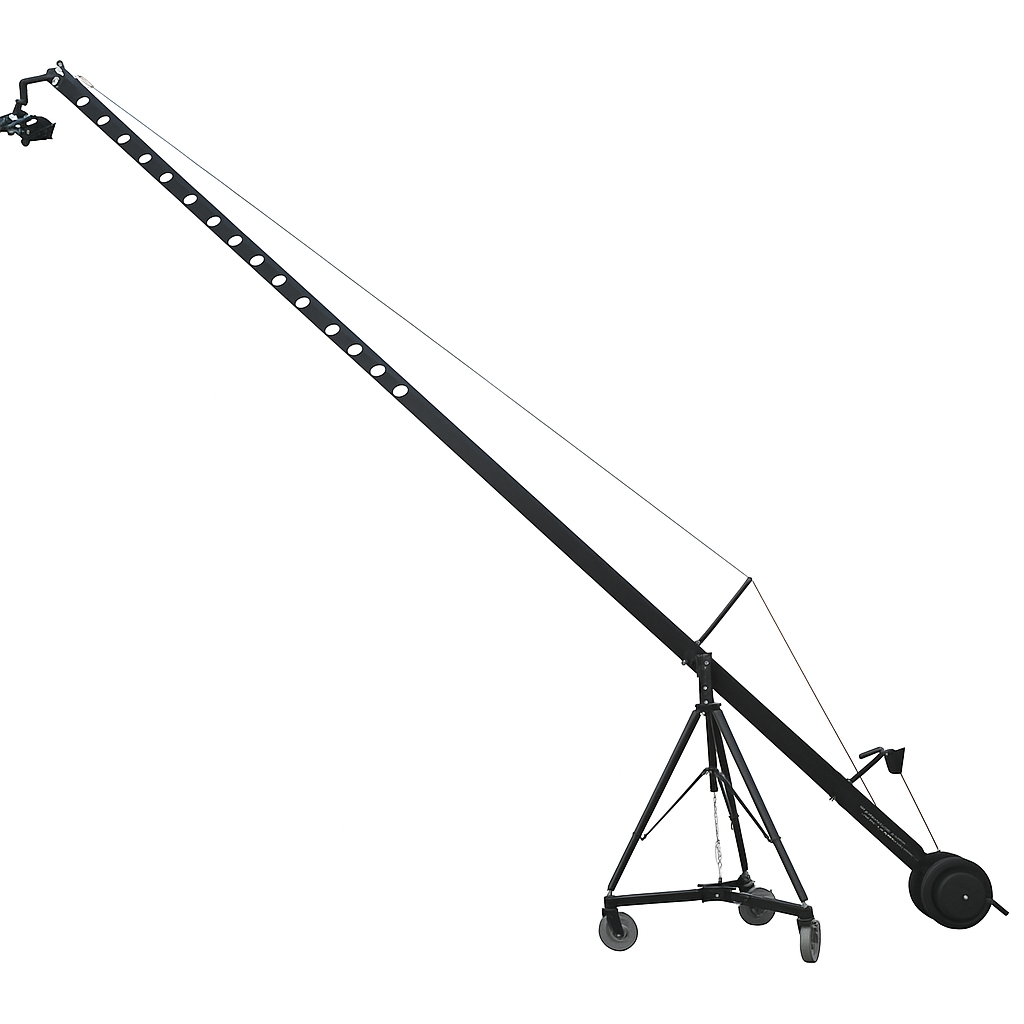

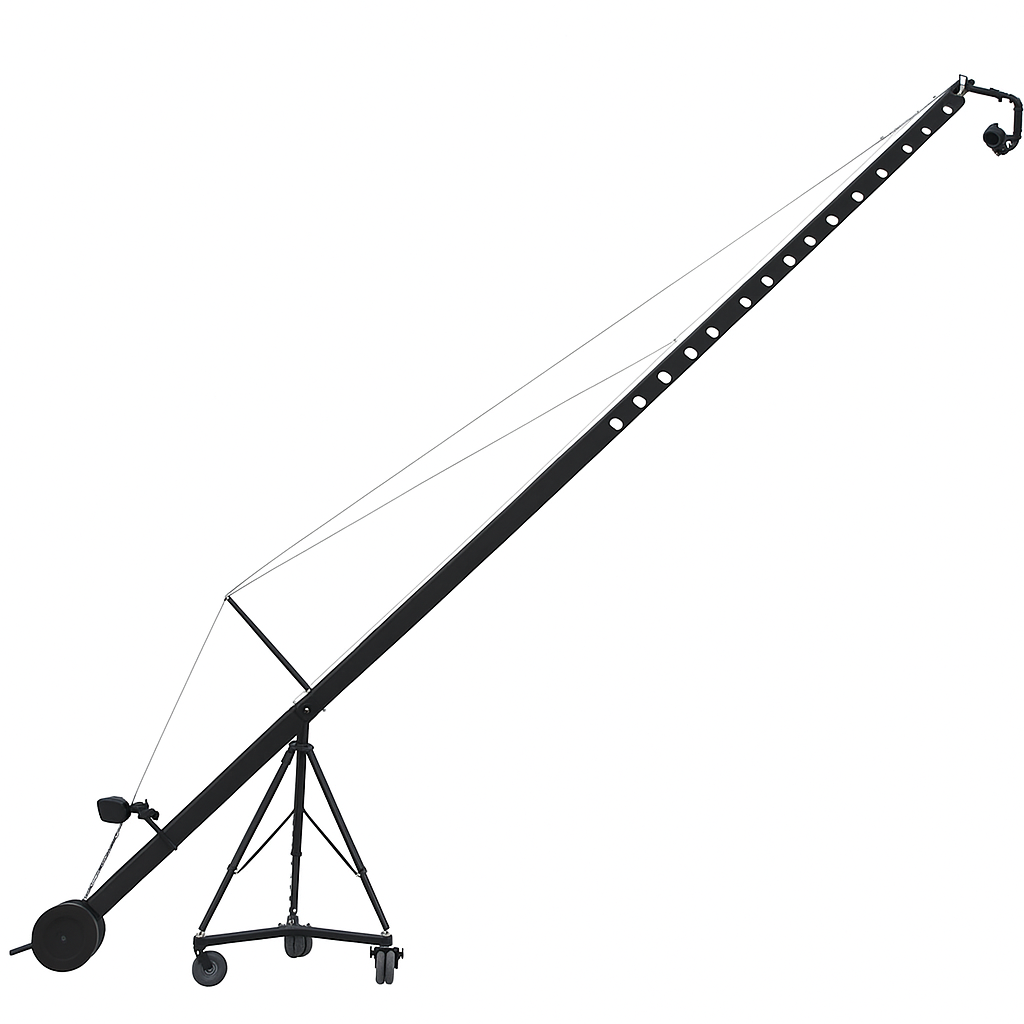

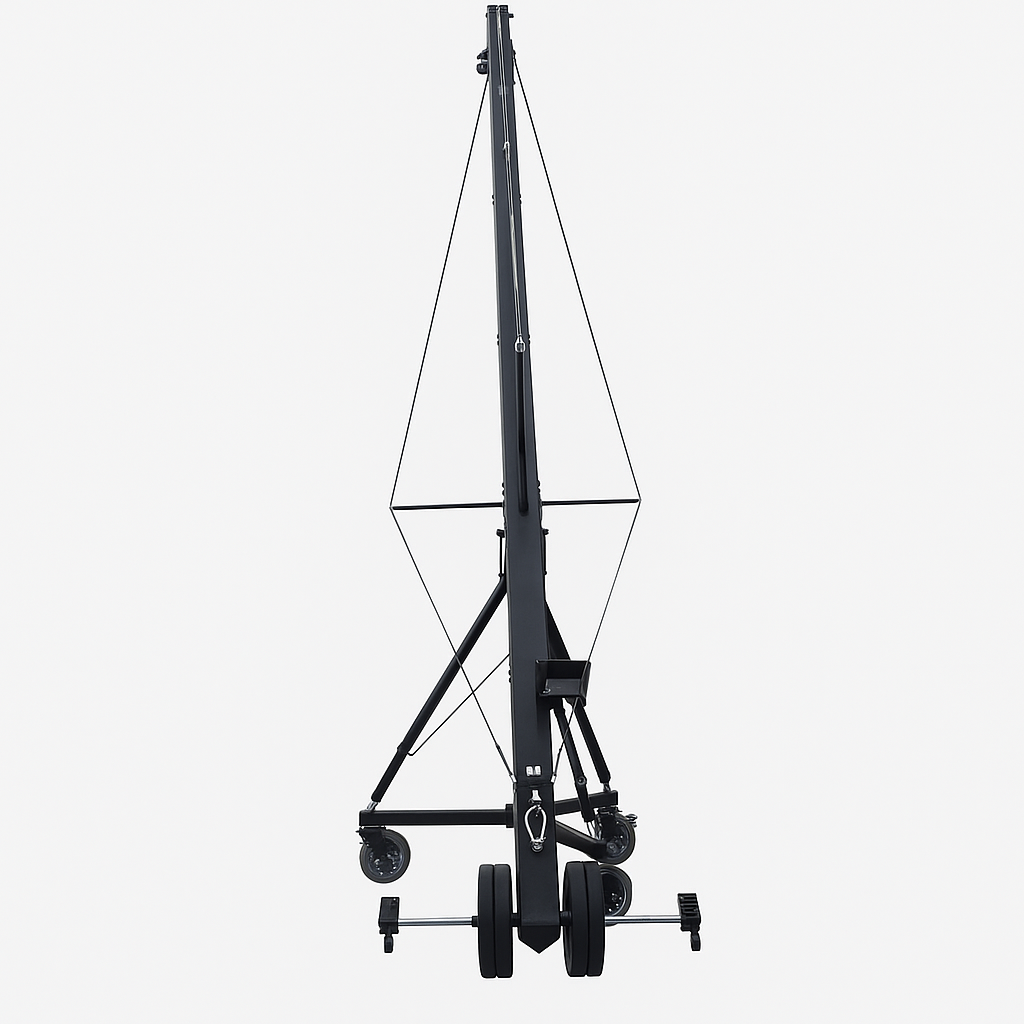

SkyForge AeroSpan 30 Cinema Crane

The SkyForge AeroSpan 30 Cinema Crane is designed for crews who demand long, elegant moves with quick setup and dependable rigidity. Its perforated aluminum boom minimizes wind drag while dual stay cables maintain alignment across the full reach. Mounted on a rolling tripod with locking casters, the AeroSpan 30 supports remote heads and full-size cinema rigs for dramatic, repeatable shots on stage or on location.

Specifications

• Material: Aircraft-grade aluminum arm, powder-coated steel tripod, stainless hardware

• Dimensions: 900 cm (max boom) x 105 cm (W) x 340 cm (H)

• Payload Capacity: 10 kg at full reach; 15 kg at mid-reach

• Boom Range: Pin-indexed 300–900 cm sections with cable tensioning

• Tripod & Counterweight: Wide-stance rolling tripod, locking casters, stackable discs

Features

• Perforated Low-Drag Boom: Reduces wind resistance for smoother moves outdoors

• Remote-Head Ready: Mitchell/100 mm bowl mount with power and SDI pass-through

• Dual Cable Stays: Maintains alignment and minimizes flex at maximum extension

• Tool-Less Setup: Pin-and-collar joints enable rapid build and breakdown

• Precision Counterbalance: Safety-collared discs and fine-trim adjustment

• Sleek Design: Matte, low-reflection finish with concealed cable routing

Maintenance

• Daily: Inspect pins, cables, and brakes; wipe down boom and wheels after use

• Weekly: Lubricate pivots, check fastener torque, and test tripod locks

• Annually: Full safety service; replace worn cables and recalibrate mounts

Warranty

• Arm & Structure: 5 years

• Tripod & Hardware: 3 years
